Radial Leads
Thin Film Resistors
Achieving wide-ranging and high-precision resistance values
Features
- The form is a square plate-type solid, which allows higher mounting density.
- The structure of the lead frame is in the same direction, so the number of assembly steps can be reduced.
- Temperature coefficient and current noise are low, and frequency properties are superior. High-frequency trimming surge countermeasures are also possible.
- Superior long-term reliability, with small changes over time.
- We can create made-to-order items with not-standard resistance values, to the designer’s desired resistance values, with short delivery times.
![](../images/product/03/main.jpg)
Type and shape dimensions
Model name | Rated power (W) |
Maximum working voltage (V) |
a | b | t | p | d | Resistance value range | ||
---|---|---|---|---|---|---|---|---|---|---|
RF-1/10H-e | 1/10 | 100 | 5±0.5 | 7.5±0.5 | 2.2±0.5 | 2.54±02 | 0.5±0.1 | 10Ω~1MΩ | ||
FLN801-e | 1/8 | 250 | ||||||||
RF-1/8N-e | 7.5±0.5 | 6.5±0.5 | 5.08±0.2 | 1Ω~1MΩ | ||||||
RF-1/4N-e | 1/4 | 300 | 10±0.5 | 8±1 | 7.62±0.2 | |||||
FLN401-e | 7.5±0.5 | 8±0.5 | 5.08±0.2 | 10Ω~1MΩ | ||||||
RF1/2H-e | 1/2 | 10±0.5 | 8±1 | 7.62±0.2 | 1Ω~1MΩ | |||||
RF-1/2N-e | 350 | 12.5±0.5 | 10±0.5 | 10.16±0.2 | 1Ω~3MΩ | |||||
RF-1/2E-e | 17.5±0.5 | 8±0.5 | 15.24±0.2 | 10Ω~5MΩ | ||||||
RF-1N-e | 1 | 500 |
|
13±1 | 2.5±0.5 | 22.86±0.2 | 10Ω~10MΩ | |||
RF-1H-e | 2000 |
|
9±1 | 20.32±0.2 | 1MΩ~10MΩ | |||||
RF-2N-e (sub standard) |
2 | 500 |
|
17±1 | 10Ω~5MΩ |
The suffix -e indicates lead-free RoHS compliance.
We provide 11 standard types in terms of rated power and form. Resistance values impose some constraints on temperature coefficient of resistance specifications, so please consult us.
![](../images/product/03/img1.png)
Type and shape dimensions
■Temperature coefficient | unit:ppm/℃ | |||||
---|---|---|---|---|---|---|
type | ±25 | ±10 | ±5 | ±3 | ±2 | ±1 |
sign | R | Q | P | N | M | L |
■Resistance value tolerance | unit:% | ||||||
---|---|---|---|---|---|---|---|
type | ±1 | ±0.5 | ±0.25 | ±0.1 | ±0.05 | ±0.02 | ±0.01 |
sign | F | D | C | B | A | Q | T |
Labeling symbols

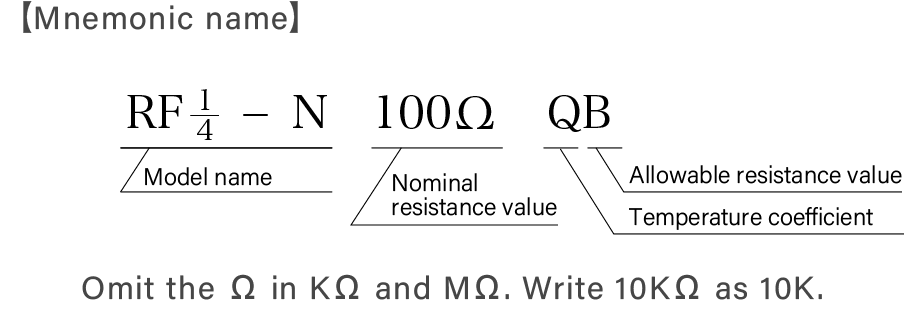

Labeling consists of marking with the nominal resistance value, temperature coefficient, resistance value tolerance, an abbreviation for Flat Electronics, and the date of manufacture.
![](../images/product/03/img2_en.png)
![](../images/product/03/img3_en.png)
■ Year and month of manufacture labeling | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Year | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 | 2026 |
sign | 5 | 6 | 7 | 8 | 9 | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
Month | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
sign | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | X | Y | Z |
Characteristics
項 目 | 試験条件 | FLAT-OHM | EIAJ-RC-2650 | MIL-R-10509F-C |
---|---|---|---|---|
Maximum rated operating temperature | 70℃ | 70℃ | 125℃ | |
Maximum usage temperature | 155℃ | 155℃ | 175℃ | |
Temperature coefficient of resistance | ±1~25ppm/℃ (RQPNML) |
±10ppm/℃、±25ppm/℃ ±50ppm/℃、±100ppm/℃ |
±50ppm/℃ | |
Temperature cycle | -55℃~155℃ 5 cycles |
±(0.1%+0.05Ω) | ±(0.25%+0.05Ω) | ±(0.25%+0.05Ω) |
Short-term overload | 2.5 times the rated voltage, applied for 5 sec. |
±(0.1%+0.05Ω) | ±(0.25%+0.05Ω) | ±(0.25%+0.05Ω) |
Solder heat resistance | 350±5℃ for 3±0.5sec. (at 1 mm from the root of terminals) |
±(0.05%+0.05Ω) | ±(0.1%+0.05Ω) | ±(0.1%+0.05Ω) |
Moisture resistance load lifespan | 40℃、95%terms of rated 、 intermittent load for 1,000 hours |
±(0.1%+0.05Ω) | ±(0.5%+0.05Ω) | ±(0.5%+0.05Ω) |
Load lifespan | 70℃terms of rated 、 intermittent load for 1,000 hours |
±(0.1%+0.05Ω) | ±(0.5%+0.05Ω) | ±(0.5%+0.05Ω) |
